IEC 61032 Figure 7 Test Finger Probe To Verify Mechanical Strength

Name: IEC 61032 Figure 7 Test Finger Probe To Verify Mechanical Strength
Brand: KingPo
Price: 1 USD

Wholesale IEC 61032 Figure 7 Test Finger Probe To Verify Mechanical Strength from china suppliers

Brand Name : KingPo

MOQ : 1

Place of Origin : China

Certification : ISO 17025 Calibration certificate

Price : To be quoted

Packaging Details : safety box

Delivery Time : 3~15 working days

Payment Terms : 100% TT in advance

Supply Ability : 10-20 units per month

usage : mechanical strengthen test of openings in the enclosure or internal barriers

standard : IEC61032 figure 7

warranty : 1 year

origin : China

Brand : KingPo

Application : Electronic Safety Tester

Contact Now

IEC 61032 Figure 7 Test Finger Probe To Verify Mechanical Strength

IEC61032 Figure 7 Rigid Finger Probe To Verify Mechanical Strengthen Of Openings In The Enclosure Or Internal Barrie

Products information:

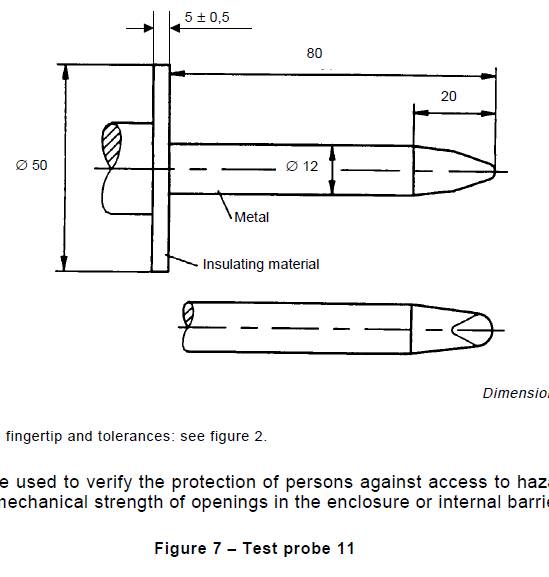

This rigid finger probe conforms to the standard requirement of IEC61032 figure 7 device 11,IEC60884,IEC60598,IEC60335,IEC60065. It is used to verify the protection of persons against access to hazardous parts, and to verify the mechanical strengthen of openings in the enclosure or internal barriers. Customizable: It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer) .The probe whose model number is with "T" is with force. There are two kinds of shell that can be chosen: the nylon shell(for anti-electric shock test) and stainless steel shell(for strength test) Main specification and corresponding technical parameters:

Parameters /Model	HT-I07	HT-I07T1	HT-I07T2
Name	Test finger	Test finger with 50N force	Test finger with 75N force
1	20 0 -0.05	20 0 -0.05	20 0 -0.05
2	80±0.2	80±0.2	80±0.2
3	R2±0.05	R2±0.05	R2±0.05
4	S4±0.05	S4±0.05	S4±0.05
5	37o 0 -10’	37o 0 -10’	37o 0 -10’
6	14 o 0 -10’	14 o 0 -10’	14 o 0 -10’
7	Ф12 0 -0.05	Ф12 0 -0.05	Ф12 0 -0.05
8	Ф50	Ф50	----
9	5±0.5	5±0.5	----
10	----	0-50N force	0-75N force

IEC 61032 Figure 7 Test Finger Probe To Verify Mechanical Strength
